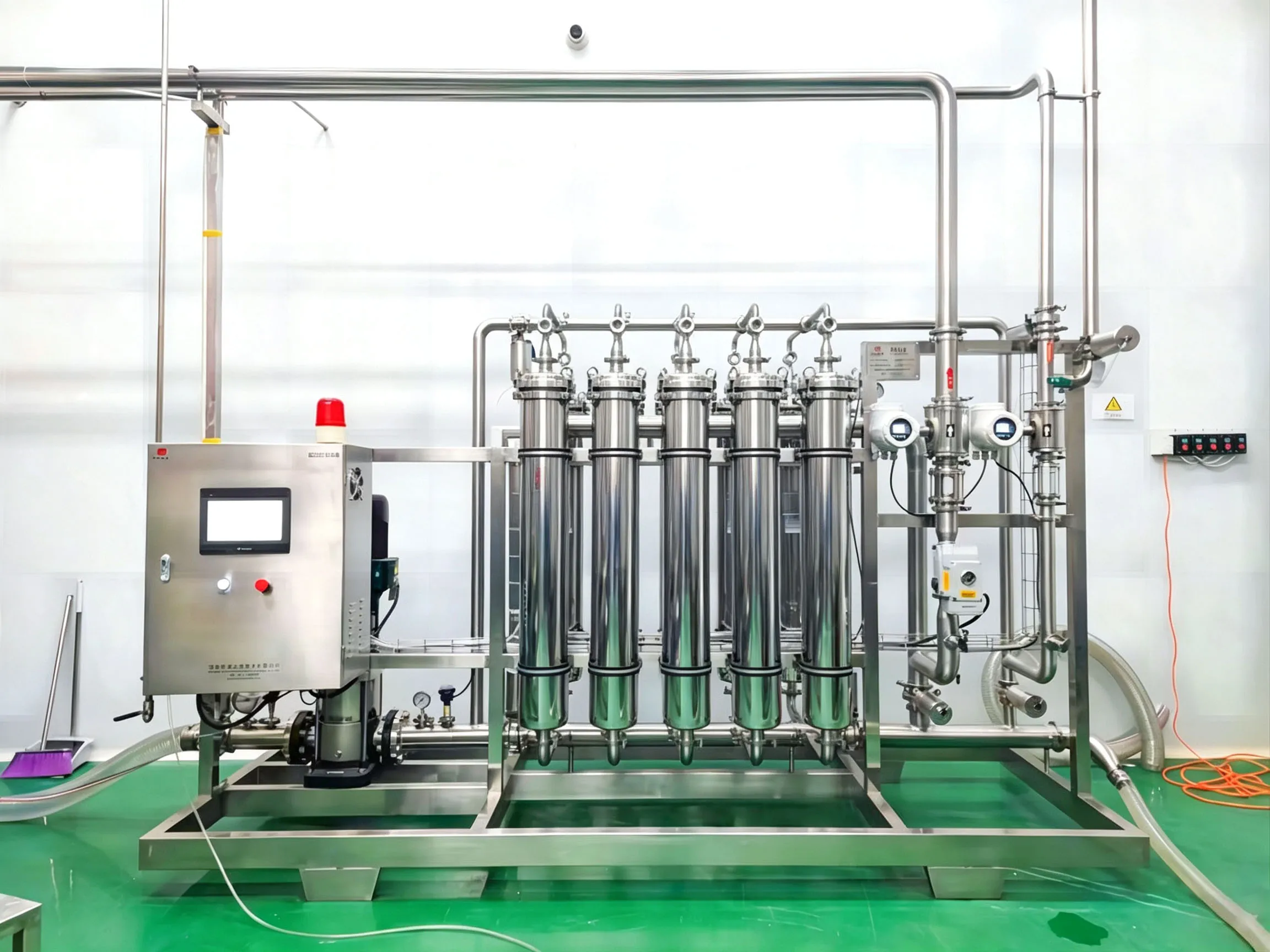

Chinese Oral Liquid Membrane Filtration System
This engineering case showcases the customized ultrafiltration membrane purification system for Chinese herbal oral liquid manufactured by BluewavBio Technology Co., Ltd. Our membrane separation equipment effectively removes macromolecular impurities from herbal extracts to obtain clear filtrate, widely used in biomedicine, plant extraction and TCM production industries.
1. Basic Project Information
- Project Name: Chinese Herbal Oral Liquid Membrane Filtration System
- Project Location: Tonghua, Jilin Province, China
- Processing Capacity: 2500 Liters per Hour (2500 L/H)
- Service Provider: BluewavBio Technology Co., Ltd.
- Service Scope: Integrated membrane separation system design, equipment manufacturing, installation, commissioning and after-sales service.
2. Project Background
Traditional Chinese herbal decoction contains plenty of macromolecular impurities including starch, protein, colloid and tannin. Traditional filtration technology cannot guarantee stable clarity, easily causing turbidity and precipitation of finished oral liquid during storage. To solve these industry pain points, BluewavBio provided targeted ultrafiltration membrane separation solutions for TCM manufacturers.
3. Technological Process
Raw material pre-treatment (Chinese herbal decoction) → Chinese herbal extract preparation → Concentrated blending → Ultrafiltration membrane impurity removal → Clear herbal filtrate → Dilution & volume calibration → Filling → Sterilization → Finished Chinese herbal oral liquid
Core Technical Advantage
The ultrafiltration membrane system intercepts macromolecular colloids and impurities while retaining effective active ingredients of traditional Chinese medicine. The filtrate reaches high clarity and significantly improves the storage stability of finished oral liquid.
4. Available Membrane Separation Equipment & Solutions
BluewavBio provides complete membrane separation systems and independent membrane components:
- Hollow fiber membrane system
- Ceramic membrane system
- Spiral wound membrane system (microfiltration, ultrafiltration, nanofiltration, reverse osmosis)
- Tubular membrane system
- Turnkey full production line project
- Membrane elements: organic spiral wound membrane, ceramic membrane, tubular membrane, hollow fiber membrane
Our products serve multiple sectors: biomedicine, plant extraction, protein purification, food & beverage, fine chemical industry and wastewater recycling.
5. Similar Reference Engineering Projects
- Gardenia Fresh Fruit Water Extraction Full Membrane Production Line, Jinning Yunnan, Capacity: 100 tons fresh raw materials per day
- Production Wastewater Membrane Separation & Reuse System, Kunming Yunnan, Capacity: 30 T/H
- Chinese Veterinary Herbal Extract Membrane Filtration System, Dengfeng Henan, Capacity: 3000 L/H
- Plant Extraction Production Line, Taizhou Jiangsu, Capacity: 10 T/H
6. About BluewavBio
BluewavBio Technology Co., Ltd. is a professional integrated membrane separation system supplier located in Chengdu, Sichuan, China. We deliver one-stop engineering solutions including scheme design, equipment production, on-site installation, commissioning and long-term after-sales support.
